Update the ATMe adapter to work with a different labor category in R.O. Writer.

If your shop uses a different labor category other than "AAA" for a customer concern and you want to be able to pull that information

over to match how you enter it in from R.O. Writer, follow these steps!

1. First, to determine the labor category code you'll want to use, bring up your R.O. Writer program and click the "Configuration" button to the middle left.

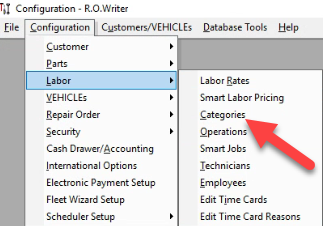

2. Once that page loads, select "Configuration" in the upper-left hand corner and select labor and then click on "Categories"

3. This will bring up your "Labor Categories" menu. In this example, we are setting up the ATMe adapter to pull from Diagnostics, so we use the top drop-down menu and select "DIAGNOSTICS" so that it'll display the code we need to input into the adapter. In this case, the Category Code is "DIA"

4. Now, exit the "Configuration" page and bring up the ATMe adapter. It'll be located in the bottom right corner. Click the ^ (up arrow) and click the ATMe adapter logo.

5. Once the ATMe adapter comes up, select "File" and then click "Setup"

6. Under the "Concern Labor Category" remove whatever is there and enter your new code, in this case it was "DIA". Once entered, click save.

7. Now that you have assigned your new code for the ATMe adaptor, whenever you populate that corresponding category in R.O. Writer, the adapter will send that information over to your ATMe Dashboard.
